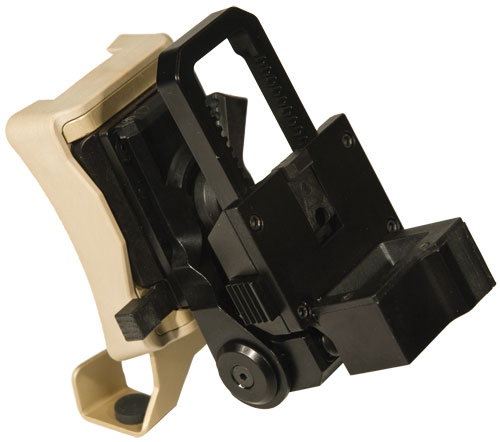

Wilcox – L4 One-Hole Army Mount with Horn Interface & Shroud

• 0 Shares Share
  0

The Wilcox L4 G19 Army Non-Breakaway Mount with Horn Interface Shoe allows firm attachement of the AN/PVS-7B/D and AN/PVS-14 arm to a variety of combat helmets when attached to a Wilcox One-Hole HMI, Three Hole HMI, or the standard Army Shroud. The NVG mounting system prevents breakaway of the mount, thereby reducing risk of loss of the NVG.

• Dimensions (operational) 4.65″ L x 2.58″ W x 3.80″ H
• Weight (G11 Mount Only) .40 lb. (6.35 oz.)
• Material Construction: Light Weight, Aerospace Grade Metal
• Accommodates NVG AN/PVS-7B/D, AN-PVS-14
• Vertical Height Adjustment: .90″ Total Travel
• Fore/Aft Travel: 1.60″ Total Travel
• Tilt to Horizon: 12 Above, 5 Below
• Flip: 110°
