UEC – C4ISR Power Distribution Unit (PDU)

• 0 Shares Share
  0

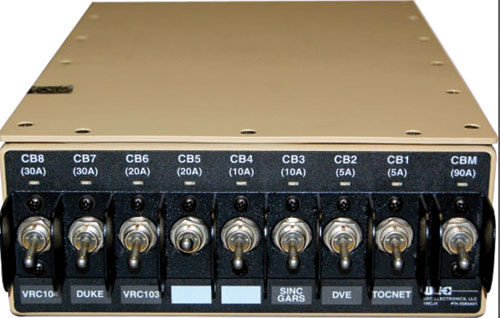

The C4ISR Power Distribution Unit (PDU) is a combat proven rugged vehicle mounted assembly providing filtered, circuit breaker protected, DC power to vehicle communications, intercom, jamming and other sensitive electronic equipment. The PDU includes isolated EMI filtering and fast- transient protection. Toggle switch circuit breakers provide selective power shutdown and embedded low-level LED indicators provide immediate system status indication. A reverse-battery protection diode prevents accidental damage to connected equipment. An innovative legend design allows rapid re-labeling of the system circuit interconnects. Three optional mounting brackets simplify installation. Additionally, the PDU is rated at 10,000 ON-Off Operations and has been tested in accordance with MIL-C-55629 and MIL-STD-202.
