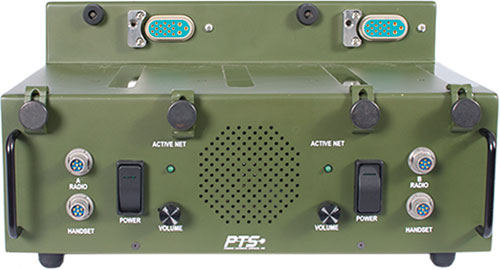

Power Supply Docking Station (PSDS)

The PSDS has become an invaluable component of tactical operation centers. Each PSDS is a rugged, self-contained system weighing between 9 and 21 lbs. packaged in a Mil-Spec transit case. Systems are simple to install; once the properly configured radios are locked into the PSDS base, you plug the PSDS into the power source and power on. Communications are up and running instantly.

All PTS PSDS utilize worldwide AC power or DC battery. The switch from AC to DC is a smooth transition with no power dropouts or spikes. The PSDS features 85-260 VAC and 47 to 440 Hz along with a built in power surge protector. The PSDS offers automatic voltage and frequency selection worldwide. There are two sets of LED lights. One set indicates which NET is active while the other changes from green to amber when power switches from AC to DC. Each PSDS has a built-in speaker, hand set connector and a remote LS-671 connector. The environmental temperature range for the PSDS is -30° C to 50° C and the relative humidity is 5% to 95%. AC power input is standard on all models; DC (22-32 VDC) is standard only on the SR-4A but is available on all models by request.

• Docking position for:
• One or two Harris AN/PRC-117G
• One or two Harris AN/PRC-152
• One Harris AN/PRC-117G and one Harris AN/PRC-152
• Includes two PTS-H-0004J cables
• Requires vehicle amplifier for mounting each RT
