Electric Fuel Battery – SWIPES Power Only System

• 0 Shares Share
  0

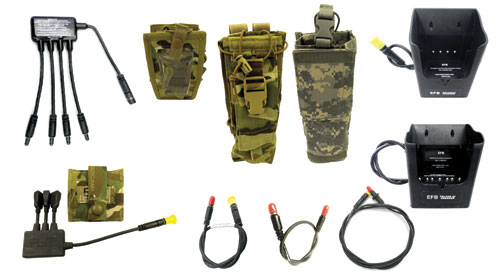

The Soldier Worn Integrated Power Equipment System (S.W.I.P.E.S.) is an advanced power distribution system that is currently a Program of Record with the Army’s PM Soldier Power with over 7,500 units currently being used in theatre. Through the use of a cable management system contained inside an armor system or ruck, SWIPES utilizes a central hub to distribute power from commonly used military batteries through a trickle charge to most individually worn equipment. This allows for the most efficient use of power and decreases the weight a warfighter must carry by virtually eliminating the need to carry spare batteries.

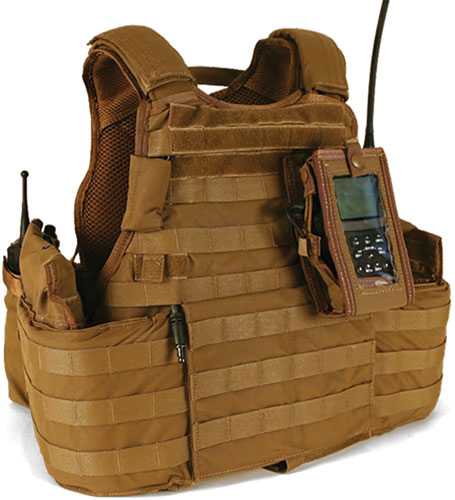

• Designed to be Soldier worn in protective vest outside armor plate but can be used independently
• 12 V, 2 A provided by a separate battery
• All cables except approximately 8″ from vest to battery are contained inside the vest
• Hub and 5 connected 6″ cables weigh approximately 6oz.
• Chargers weigh approximately 6 oz each (system can connect up to 3)
• Hub contains circuit protection
• Specialized applications on request
